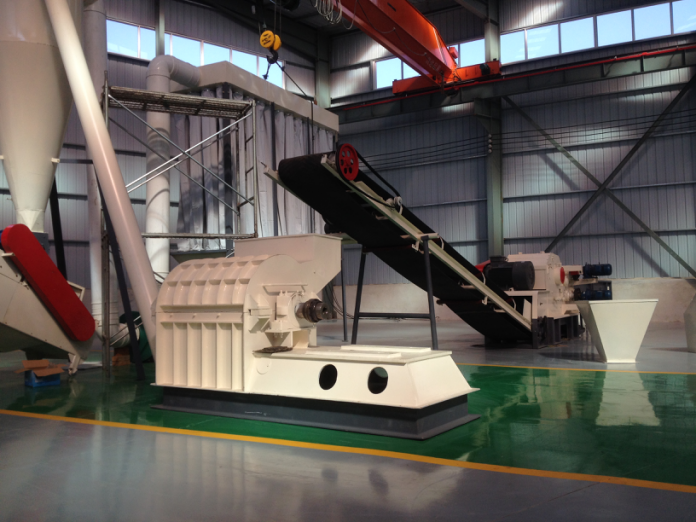

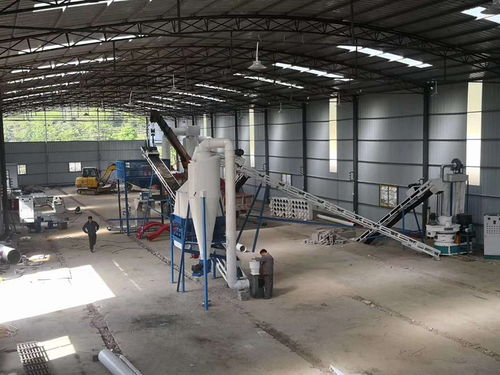

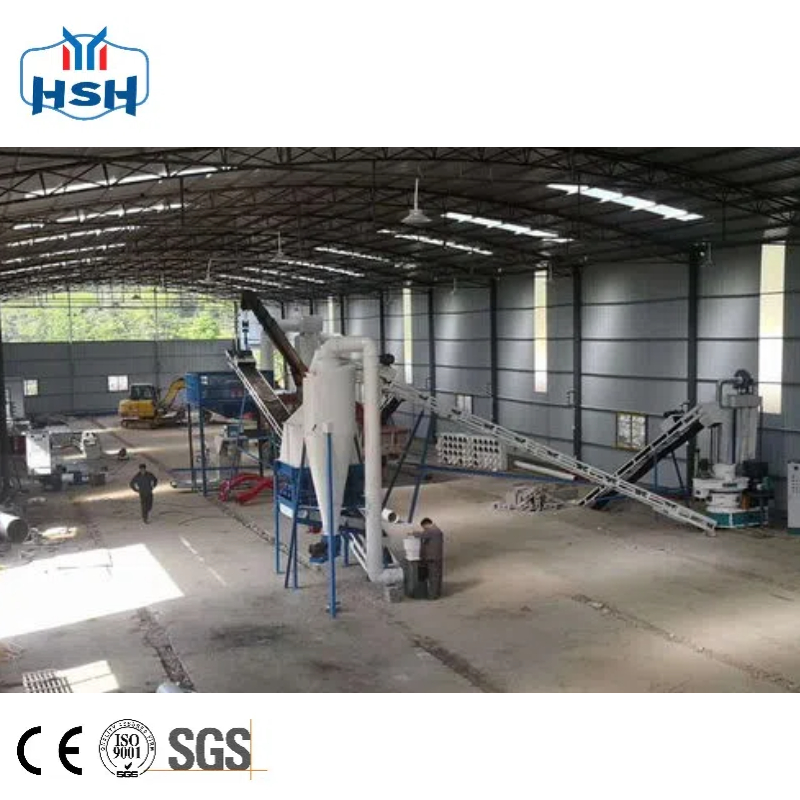

5-10 T/H Biomass Wood Chip Pellet Machine with CE Certification Project Overview

Our pellet equipment is suitable for different biomass materials, such as wood, straw, rice husk, sugarcane, peanut shells, grass and so on. Generally speaking, a complete set of wood pellet equipment includes wood chipper, wood crusher (also hammer mill), rotary dryer, wood pellet mill, countercurrent cooler, packing machine, electrical control system and so on. We can customize each project according to customer's raw material and production capacity. With the rise of biomass pellets as a new energy source in the European and American markets, the biomass pellet production line produced by HaiShiHong has been landing in the United States, Canada, Australia, Europe and other countries and regions.

Suitable For Various Raw Materials：

The raw materials can be various waste forestry raw materials, such as birch, larch and all other kinds of trees. The raw material state can be logs, branches, small wood chips, sawdust, etc. It can also be from various agricultural waste raw materials, such as wheat husks, rice husks, peanut husks, sunflower seed husks, distillers grains, corn straw, wheat straw, soybean straw, pasture grass, alfalfa, etc. The size of the final finished biomass particles is 6/8/10/12mm or other customized sizes.

Advantages Of Biomass Pellets Made By RICHI's Wood Pellet Line:

* Made from waste wood and straw. Wide variety of sources.
* New energy, protect the environment.
* Using ring die pellet machine, the finished pellets have high compression ratio and high calorific value.
* Make potash fertilizer after burning to improve efficiency.

Different material need different machine

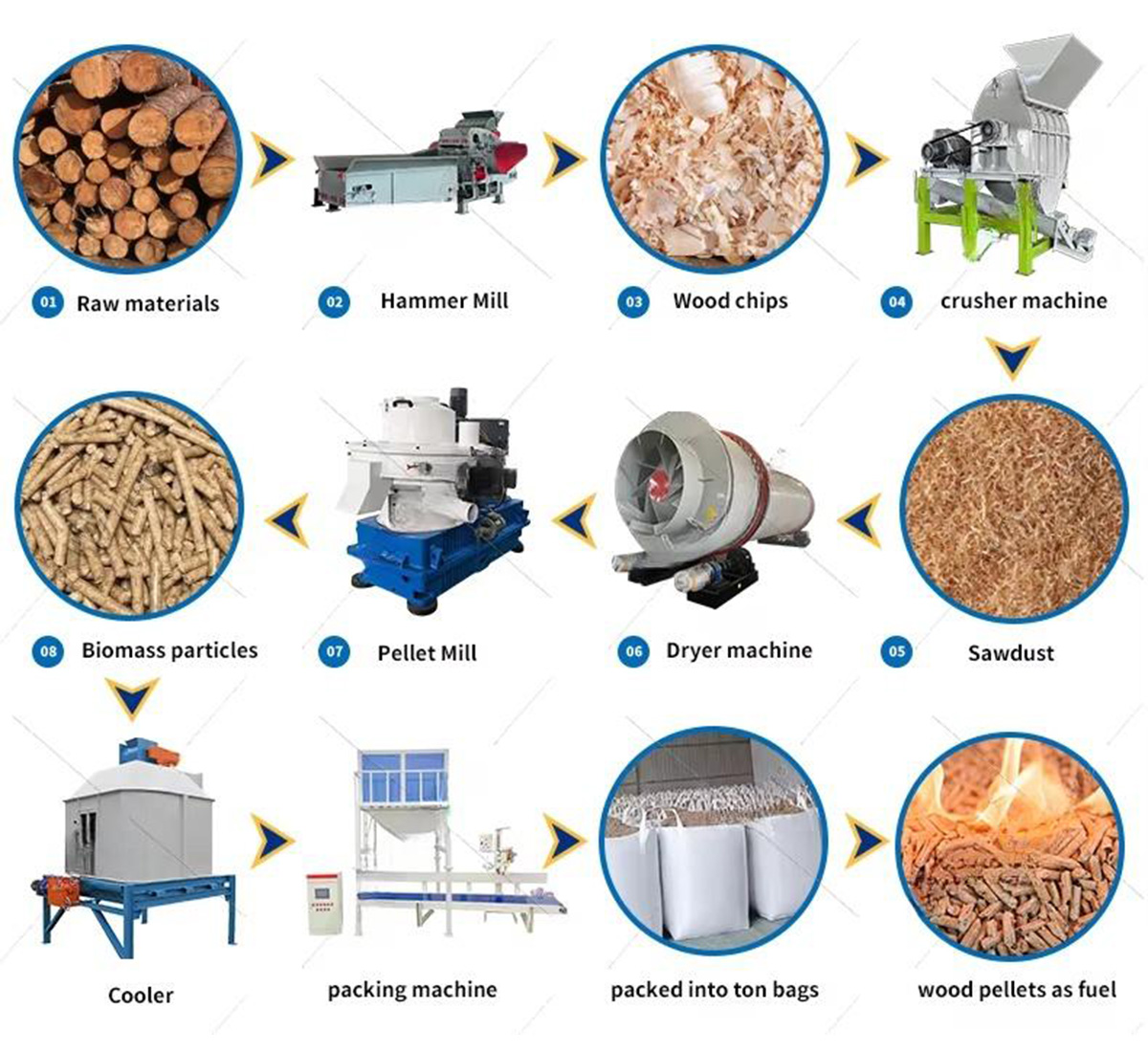

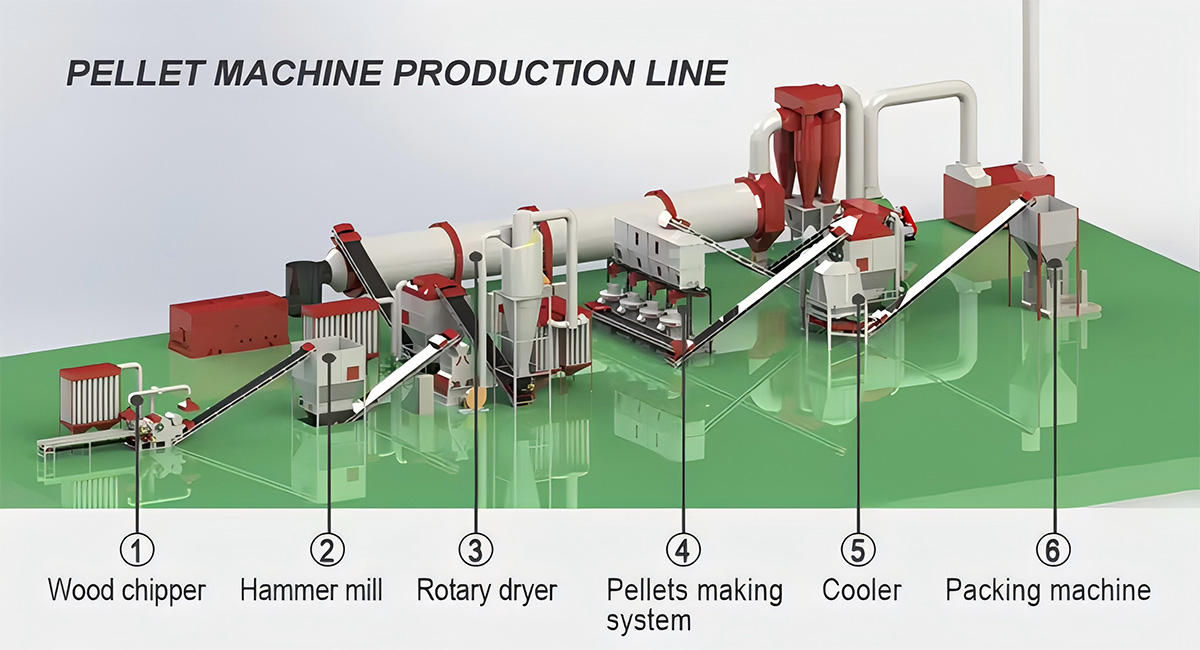

Take wood log as an example,the whole process include:

1)Drum wood chipper-To make wood log into small size wood chips.
2)Hammer mill/Crusher- To make wood chips into sawdust.
3)Dryer- To dry the high moisture content of sawdust into 12-15%.
4)Pellet mill- The dry sawdust are pressed by a pellet machine into pellets with a diameter of 6 or 8 mm.
5)Cooler- Reduce the temperature of pellets to room temperature.
6)Packing machine- Pack the pellets into the bag according to the set weight.

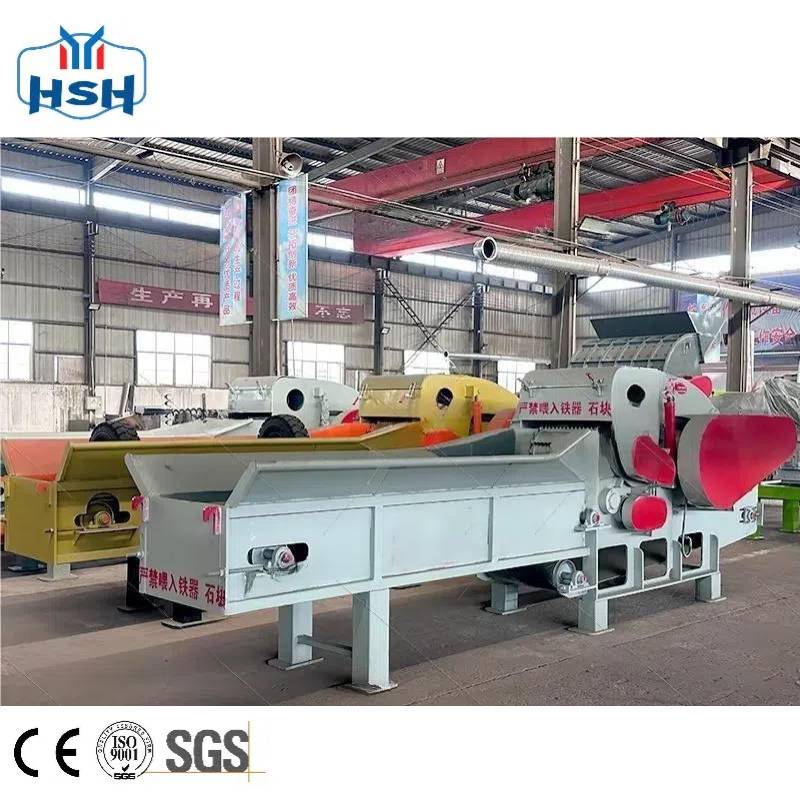

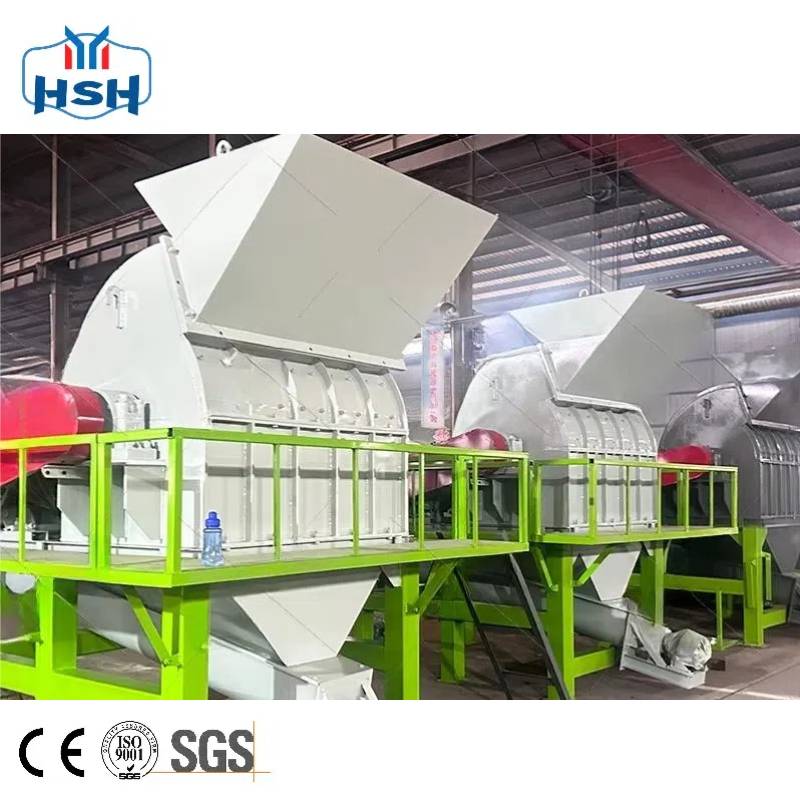

Comprehensive wood crusher

Comprehensive wood crusher is a machine for producing wood chips. It applies for various raw material, such as, wood pallet, building template, wood logs, timber, furniture waste etc.

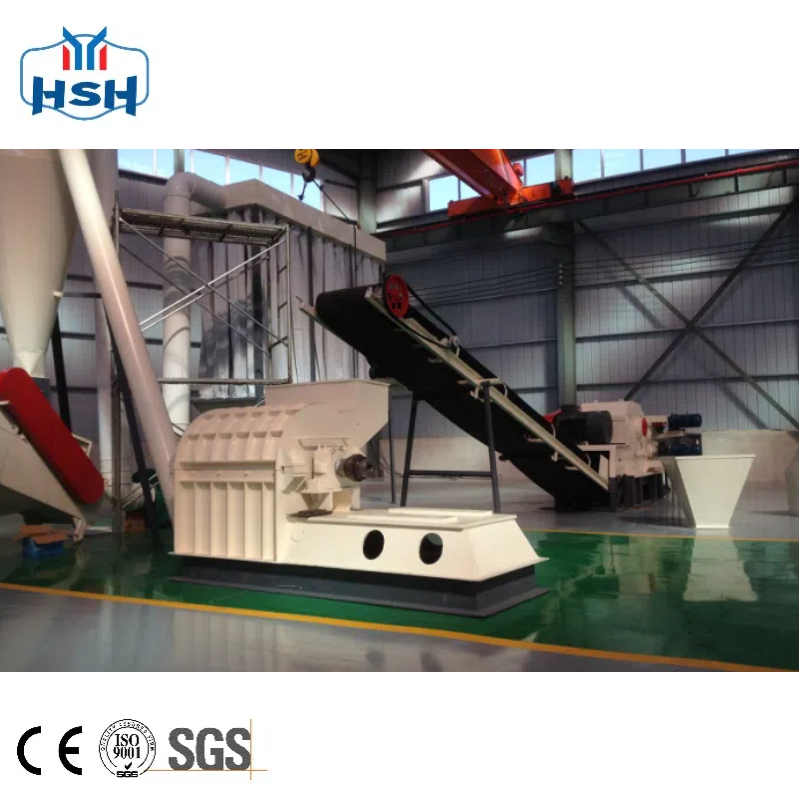

Hammer mill

Hammer mill is used to crush biomass materials such as straw, stalk, grass into small size(3-5mm). For pelletizing, the size of raw materials should be smaller than the hole size of flat die, or they may block the pellet machine and affect the molding rate. Hammer mills can be driven by electric motor or diesel engine, the production capacity is from 200kg/h to 2100kg/h.

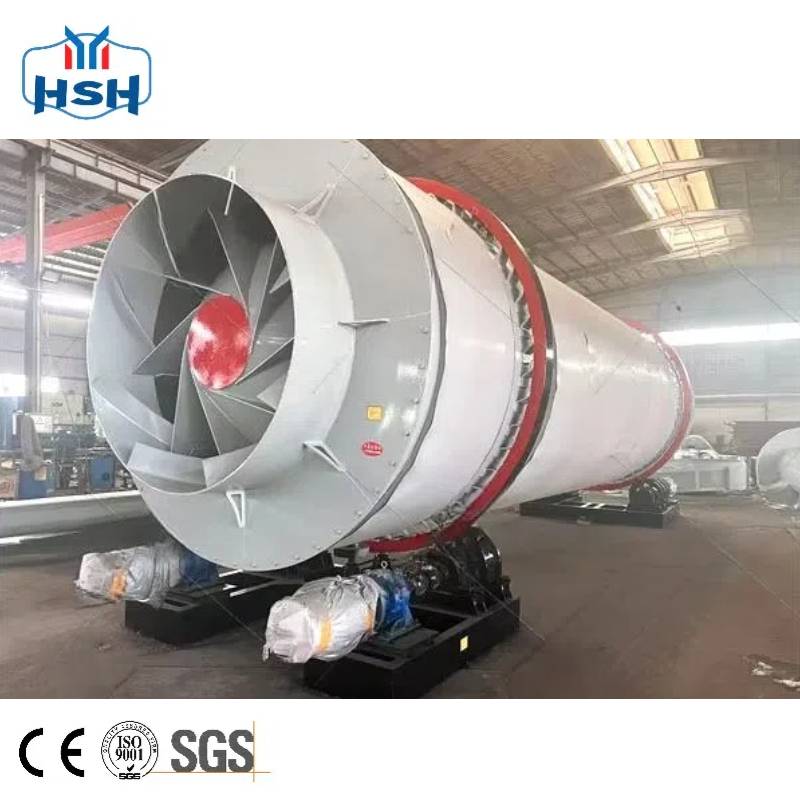

Dryer

Raw materials for making wood pellet should have water content between 10% and 18%. Dryer machine can lower the water content to required level, so as to improve the molding rate and pellet quality..

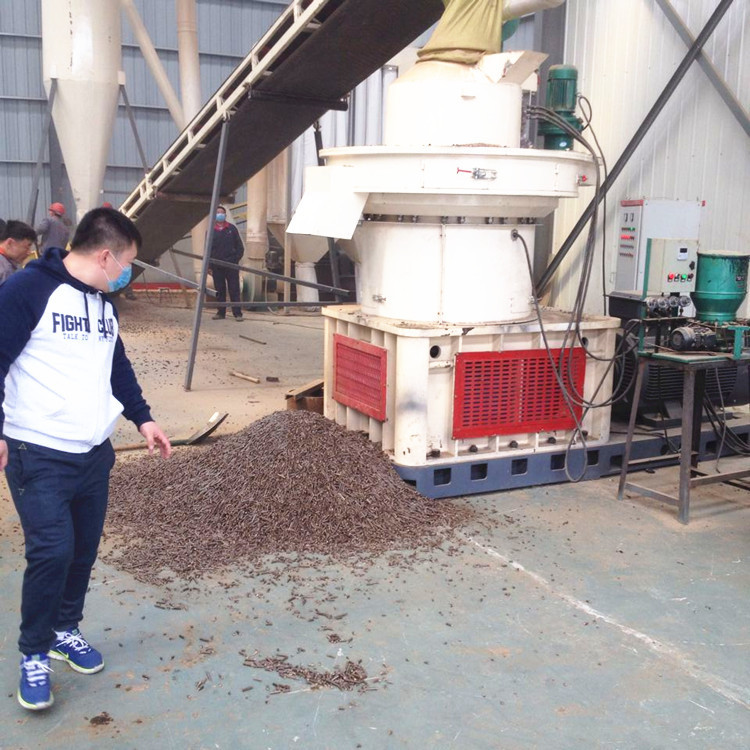

Ring die pelletizer

Wood pellet machine (also wood pellet mill) is a machine that is used to press sawdust and other crushed biomass material powder into biomass wood pellets.

Delivery and Transportation:

1. Wooden crate packing can protect wood shredder, tire shredder from dust, moisture and corrosion.
2. Excellent logistics team to ensure the machine is safely delivered to customer's warehouse with no extra charge from export or import customs.

Hai Shi Hong Service

Pre-sales: Provide fitted solution and offer to customers, is able to adjust the layout of complete line to fit customers working area, also provide technical support 24 hours service online.
After sales:Hai Shi Hong skilled technicians are experienced at oversea installation, therefore they are available to assist with onsite installation, commissioning & training on request. Layout drawing, circuit diagram and maintenance manual will be provided together with our products after sales, so that ensure customers have plenty of time to get prepared for installation.
Wearing parts support:Hai Shi Hong has widely built extensive cooperation with wearing parts partner manufacturers more than 14years, has ability to continuously provide wearing parts and after-sale service to global market.

Company Profile
Located in Gongyi City, Zhengzhou City, Henan Province, China, Haishihong Machinery is a quality manufacturer that designs and manufactures industrial shredders, wood processing machinery, waste tire recycling equipment and scrap metal recycling machinery and other machines for the recycling industry, and Haishihong's products have been certified by CE and ISO. So far, our products have been exported to more than 30 countries and regions all over the world and we are constantly expanding our market share.

We endeavor to improve and research, and have developed various new products in the past few years, which are popular in domestic and overseas markets, and have won a good reputation and corporate image.We are always committed to the best quality and service, welcome to contact us!

TECHNICALDATA

Comprehensive wood crusher

Ring die pelletizer
