Scrap Steel Crusher

Application Materials
Waste light and thin metal materials, cans, paint buckets, iron sheets, color steel tiles, etc.

Power
18.5-220kw

Yield
600-12000kg/h

Product Description

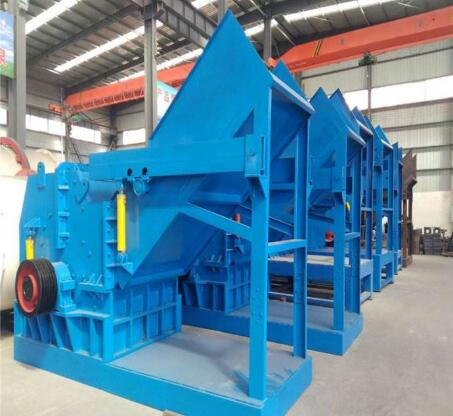

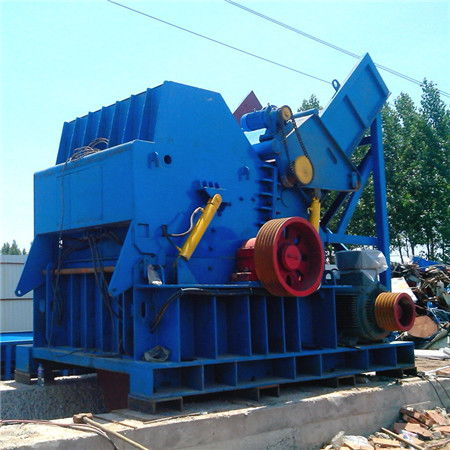

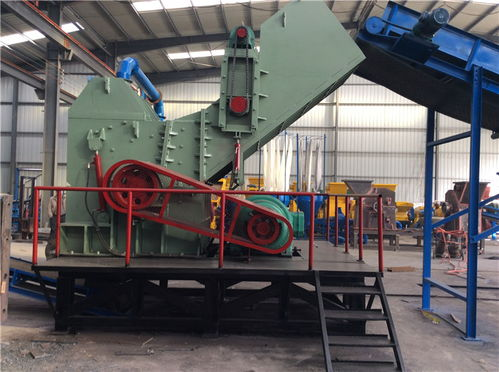

Scrap shredder is mainly used for recycling scrap metal materials. The machine adopts a variety of hammer crushing principles to realize the shredding and recycling of scrap metal materials. Therefore, this machine is also called scrap iron shredder. Mainly used for scrapped cars, scrapped home appliances and thin scrap steel machines.

Scrap crusher is a professional equipment mainly used for scrap steel crushing. The head strike completes the crushing operation of the scrap, and crushes the scrap metal into particles, so as to facilitate the long-distance transportation and metallurgy of the scrap metal particles.

For large scrap steel components, our company can effectively provide assistance for the early crushing of the scrap steel shredder through the independent research and development of the supporting forced shortening and extrusion device, so as to improve the working effect of the scrap steel shredder. With the effective recycling and utilization of scrap metal resources, the mining consumption of natural mineral resources can be greatly reduced, so as to achieve the purpose of reducing land occupation, reducing total social energy consumption, saving investment, protecting the ecological environment, and improving labor production efficiency..

Applicable materials:

All kinds of scrap metal cans, motorcycle racks, bicycle racks, scrap home appliances, car shells, carriage boards, keel strips, paint buckets, scrap metal, color steel tiles, iron briquettes, scrap aluminum, scrap steel, scrap copper, coils Gates, scrap angle iron, etc.

The application status of scrap steel crushing production line in my country Since the 1990s, metal balers, crocodile shears and other equipment were generally used in my country to process scrap steel. The production needs of "feeding into the furnace", "energy saving and emission reduction" and "green steel". With the reform and deepening of my country's scrap supply and demand mechanism, the old "small and complete" model of "self-recycling, self-purchasing, and self-application" has been gradually broken by steel mills.

Performance characteristics
1. The materials processed by the scrap crusher are neat in shape and similar in specifications, have a high heap specific gravity, and have less attachments;

2. The scrap crusher is installed with a foundation, and the startup is stable without too much noise;

3. The scrap crusher has a strong structure and densely clothed stiffening plates to ensure the strength of the box.

4. The scrap crusher can be equipped with conveyor belt feeding equipment;

5. The blade of the scrap crusher is a meshing blade made of high alloy, which has a good crushing effect on any high-hardness material.

Working principle
Scrap crushing is a processing method that uses a crusher to crush scrap, and uses a sorting system to sort the crushed scrap to obtain pure high-quality scrap. Its working principle is that under the continuous drive of high-speed and high-torque motor, the hammers on the rotor of the crusher take turns to hit the scrap steel in the cavity. The steel is then processed by the sorting equipment. The scrap steel crusher can peel off the surface dirt such as rust and paint on the surface of the scrap steel during the crushing process, and then under the action of the magnetic separation equipment, the pure crushed steel of the corresponding block size can be obtained. . It is especially effective in the treatment of unsorted and mixed low-quality scrap steel and scrapped cars, and it is a very realistic tool to change the quality of scrap steel at present.

TECHNICALDATA

CLIENTS

Delivery and Transportation:
Wooden crate packing can protect wood shredder, tire shredder from dust, moisture and corrosion.
Excellent logistics team to ensure the machine is safely delivered to customer's warehouse with no extra charge from export or import customs.

Hai Shi Hong Service
Pre-sales: Provide fitted solution and offer to customers, is able to adjust the layout of complete line to fit customers working area, also provide technical support 24 hours service online.
After sales:Hai Shi Hong skilled technicians are experienced at oversea installation, therefore they are available to assist with onsite installation, commissioning & training on request. Layout drawing, circuit diagram and maintenance manual will be provided together with our products after sales, so that ensure customers have plenty of time to get prepared for installation.
Wearing parts support:Hai Shi Hong has widely built extensive cooperation with wearing parts partner manufacturers more than 14years, has ability to continuously provide wearing parts and after-sale service to global market.
