【product details】 The scrap car shredder can crush and process scrap car bodies, scrap colored steel tiles, scrap light and thin metal materials, etc., and control the size of the materials to make them regular in shape, high in bulk density, and easy to sort into fine materials for ironmaking, Recycling in steel mills. 【Application Materials】 Bicycle frame, motorcycle frame, color steel tile, various scrap iron scrap, briquetting, etc. 【Power】18.5-220kw 【Production】600-12000kg/hproduct description

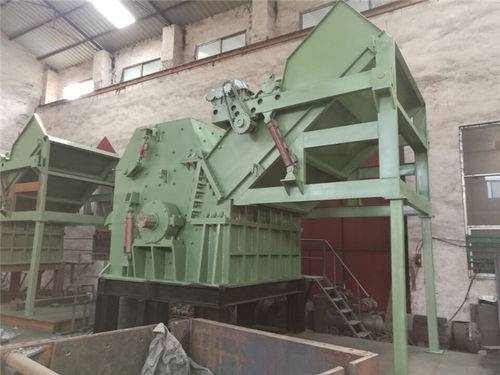

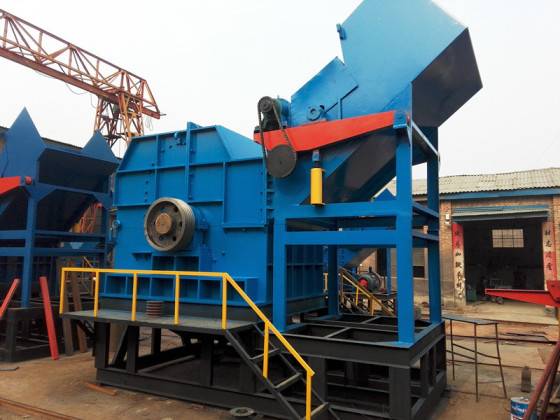

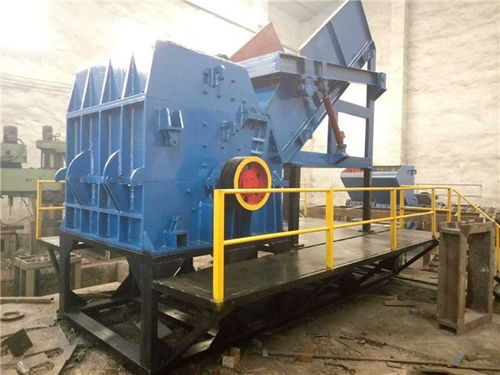

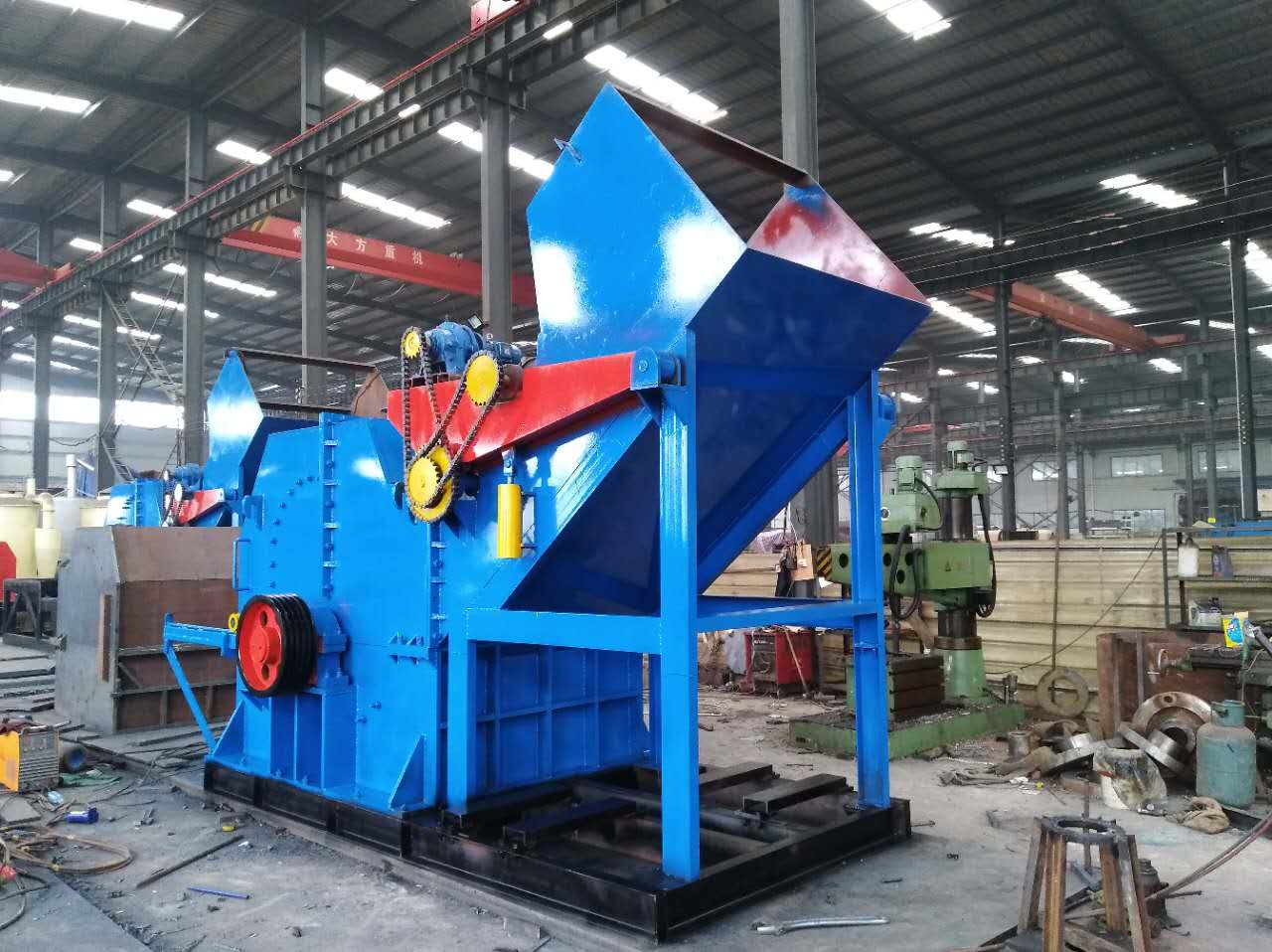

Product Description The scrap car shredder is a special scrap metal recycling shredder carefully developed by HaiShiHong Machinery based on many years of manufacturing experience.
Application areas: widely used in automobile recycling companies, scrap steel recycling companies, metal smelting, construction industry, metal recycling industry, etc.
Applicable materials:
bicycle frame, motorcycle frame, color steel tile, carriage board, keel strip, color TV, refrigerator, washing machine, scrap angle steel, scrap square tube, filing cabinet, safe, car slot, packing block, electrical shell, cans , beer cans, cans, Sprite cans, Lulu cans, paint buckets, bicycles, motorcycles, car shells, color steel tiles, scrap angle iron, rolling shutters, iron boxes, etc.

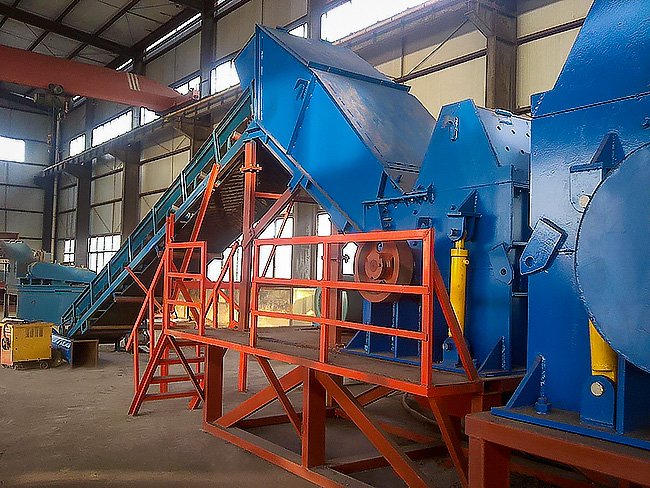

Performance characteristics 1. The scrap car crusher blade is a meshing blade refined with high alloy, which has a good crushing effect on any high hardness material; 2. The waste car crusher is driven by a geared motor, which saves 20% of the electricity compared to other can crushers; 3. The waste car crusher is installed with a foundation, and the startup is stable without too much noise; 4. The solid structure of the scrap car shredder and the densely clothed stiffeners ensure the strength of the box; 5. The scrap car crusher can be equipped with conveyor belt feeding equipment, which expands the scope of processing and recycling

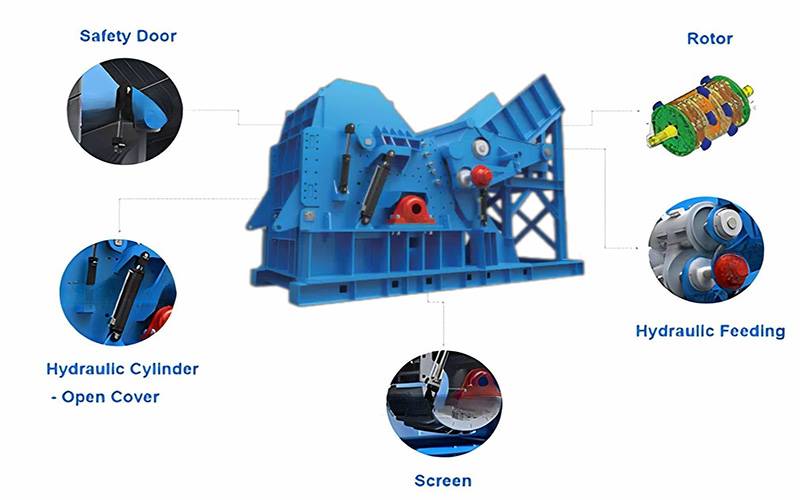

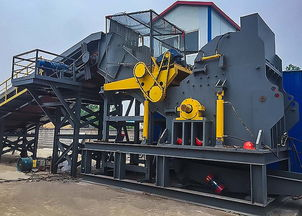

Working principle The scrap car crusher adopts the combination of fixed knife and movable knife. The fixed knife is S-shaped and fixed on the top of the cutter head. When the material enters the casing, it plays the role of forced feeding and forced crushing. The moving knife is a vertical head. When the material is torn strongly by the fixed knife, particles smaller than the screen will be formed during the beating process with the rotation of the turntable, which will be filtered into the discharge port through the screen. In order to be able to separate the iron particles and aluminum particles in the metal material, the conveying device equipped with the scrap car shredder is combined with the magnetic separation, which can separate the aluminum and iron in the metal material after being crushed by the scrap car shredder. At the same time, it passes through a dust collector to absorb all the patent leather and impurities, so that the crushed metal particles are clean and bright. In addition, the screen can be customized according to the material and user needs.
TECHNICALDATA
Model
800
1000
1300
1600
1800
Mainframe Floor Stand
Channel steel fabrication
Channel steel fabrication
Channel steel fabrication
Channel steel fabrication
Channel steel fabrication
Size (MM)
2200*1600*2800
2400*1750*2800
3300*2520*4050
4770*3860*4750
5600*2500*4800
Thickness of mainframe steel plate (MM)
20mm
20mm
50mm
50mm
50mm
Host motor
45-55KW
75KW*1
132KW*1
110kw*2 of 200KW*1
315KW*1
Rotor diameter (MM)
400mm
500mm
600mm
730mm
1000mm
Hammerhead
16 handles (fierce steel) each weighing 12KG
16 handles (fierce steel) each weighing 12KG
24 handles (fierce steel) each weighing 25KG
24 handles (fierce steel) each weighing 28KG
16 handles (fierce steel) weighing 45KG each.
Spindle material
40CrMo
40CrMo
40CrMo
40CrMo
40CrMo
Sieve material
Mn13
Mn13
Mn13
Mn13
Mn13
Screen thickness (MM)
50
50
80
80
120
Electric Motor Block
Channel steel fabrication (thickened)
Channel steel fabrication (thickened)
Channel steel fabrication (thickened)
Channel steel fabrication (thickened)
Channel steel fabrication (thickened)
Infeed conveyor
500*7M
500*7M
800*4M
1200*10M
1400*12M
Discharge Conveyor
500*4M
500*4M
600*6M
800*5M
1000*6M
Magnetic Separation Conveyor
500*3M
500*3M
600*5M
800*5M
1000*6M
Starter cabinet
Star-delta start
Star-delta start
Star-delta start
Star-delta start
Star-delta start
CLIENTS
Delivery and Transportation: Wooden crate packing can protect wood shredder, tire shredder from dust, moisture and corrosion. Excellent logistics team to ensure the machine is safely delivered to customer's warehouse with no extra charge from export or import customs.
Hai Shi Hong Service Pre-sales: Provide fitted solution and offer to customers, is able to adjust the layout of complete line to fit customers working area, also provide technical support 24 hours service online. After sales:Hai Shi Hong skilled technicians are experienced at oversea installation, therefore they are available to assist with onsite installation, commissioning & training on request. Layout drawing, circuit diagram and maintenance manual will be provided together with our products after sales, so that ensure customers have plenty of time to get prepared for installation. Wearing parts support:Hai Shi Hong has widely built extensive cooperation with wearing parts partner manufacturers more than 14years, has ability to continuously provide wearing parts and after-sale service to global market.
Company Profile Located in Gongyi City, Zhengzhou City, Henan Province, China, Haishihong Machinery is a quality manufacturer that designs and manufactures industrial shredders, wood processing machinery, waste tire recycling equipment and scrap metal recycling machinery and other machines for the recycling industry, and Haishihong's products have been certified by CE and ISO. So far, our products have been exported to more than 30 countries and regions all over the world and we are constantly expanding our market share.
We endeavor to improve and research, and have developed various new products in the past few years, which are popular in domestic and overseas markets, and have won a good reputation and corporate image.We are always committed to the best quality and service, welcome to contact us!
