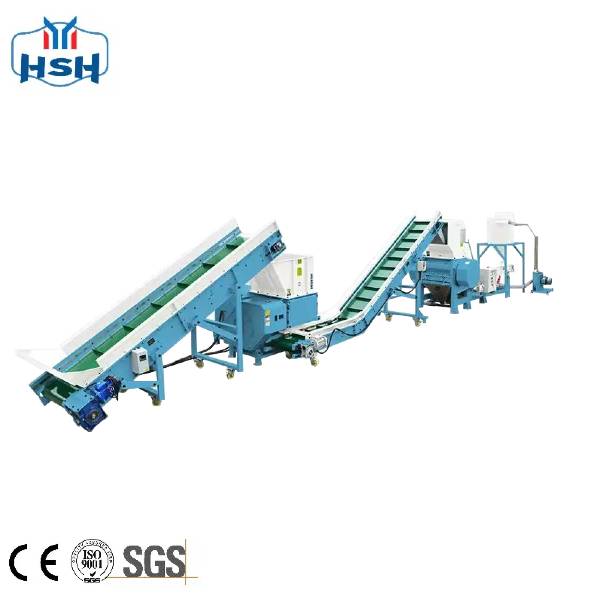

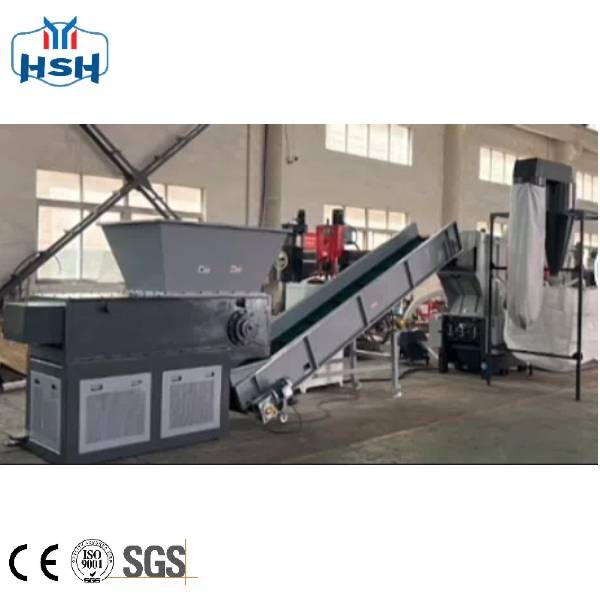

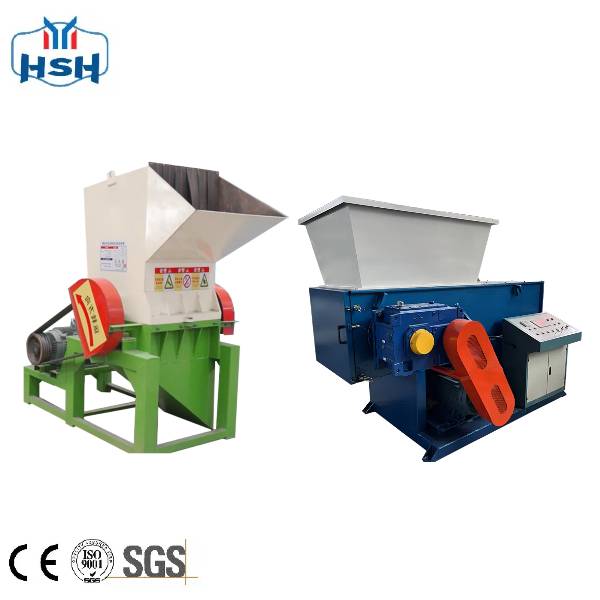

Plastic PVC PE PP Single Shaft Block/Film Shredding and Crushing Recycling Line

Plastic Shredding and Crushing Recycling Processing Line is a specialized equipment for plastic processing, mainly used for shredding all kinds of plastic materials, shredding and crushing materials including plastic blocks, barrels, tubes, wood, wood pallets, large materials, plastic containers, plastic chairs, plastic pallets, plastic bottles, woven bags, jumbo bags, etc., which is regarded as the most advanced plastic shredding and crushing processing equipment at present.

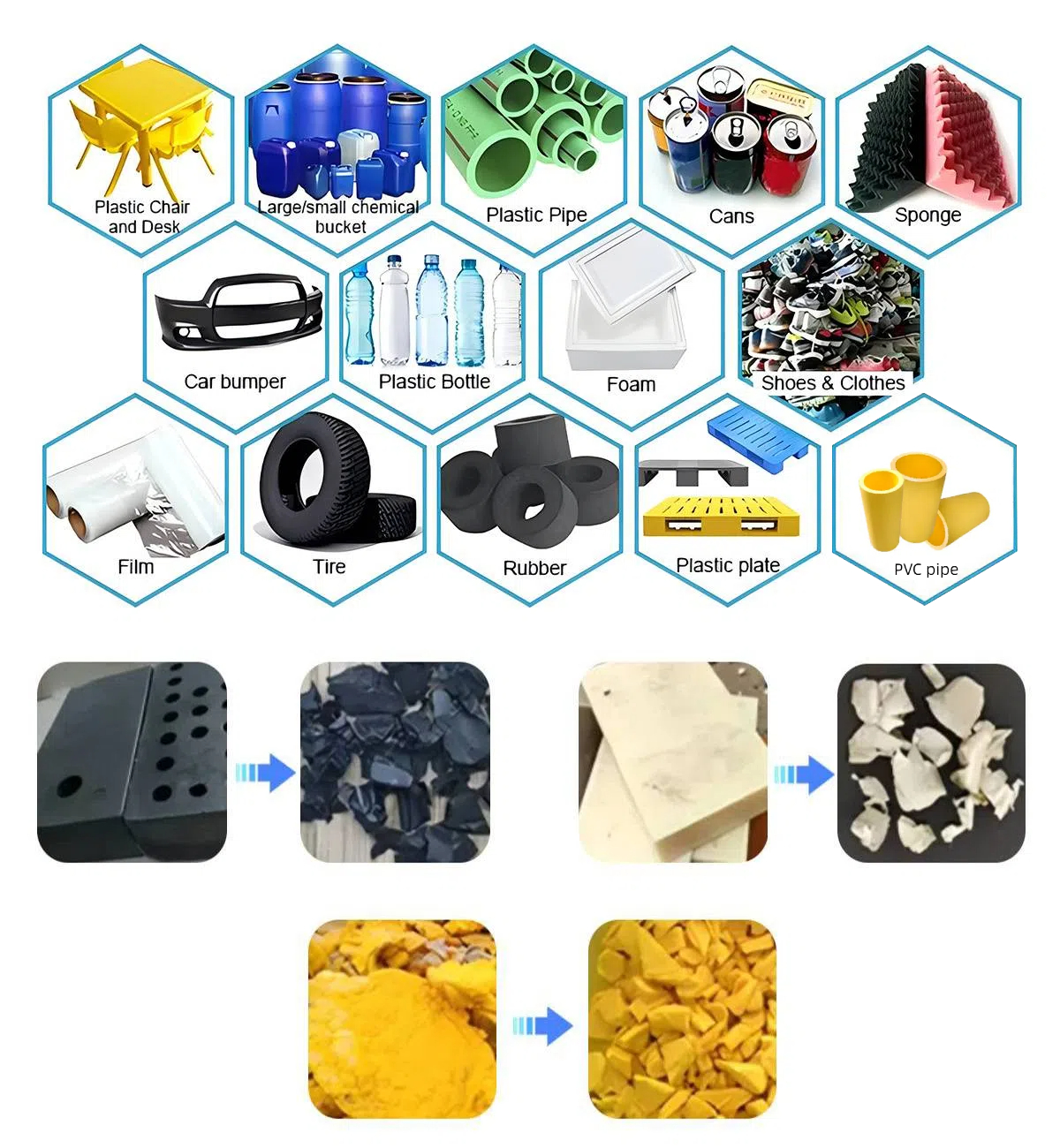

Adaptation range and effect demonstration

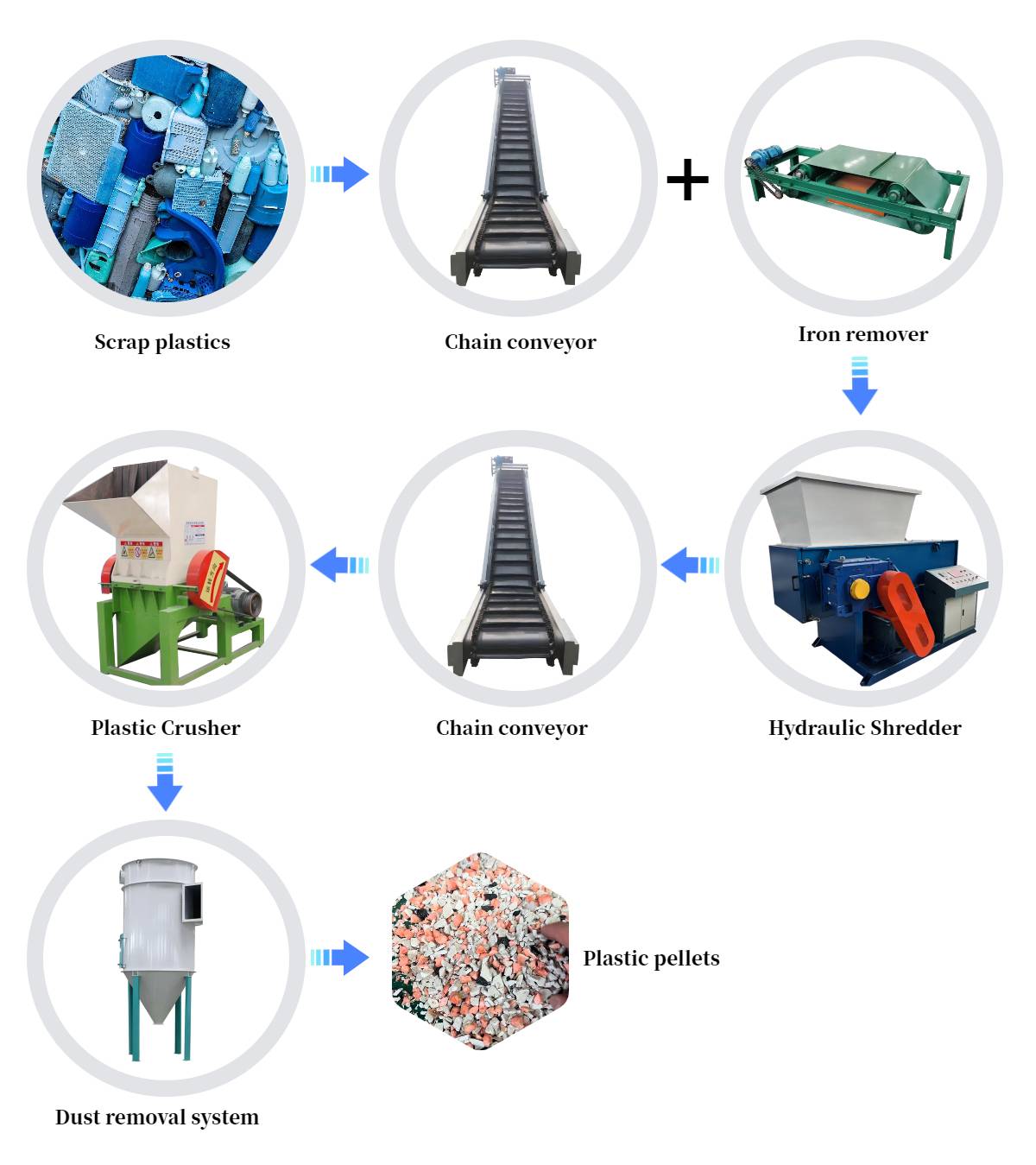

Workflow

Waste plastic raw materials containing iron will firstly be removed from the material by the conveyor belt with iron remover, then put into the single shaft hydraulic shredder to get small pieces, then into the plastic crusher, crushed into crushed pieces to meet the customer's requirements, at the same time, our dust collection system will further collect the finished product to remove the dust in order to achieve the purpose of clean and non-polluting and low noise.

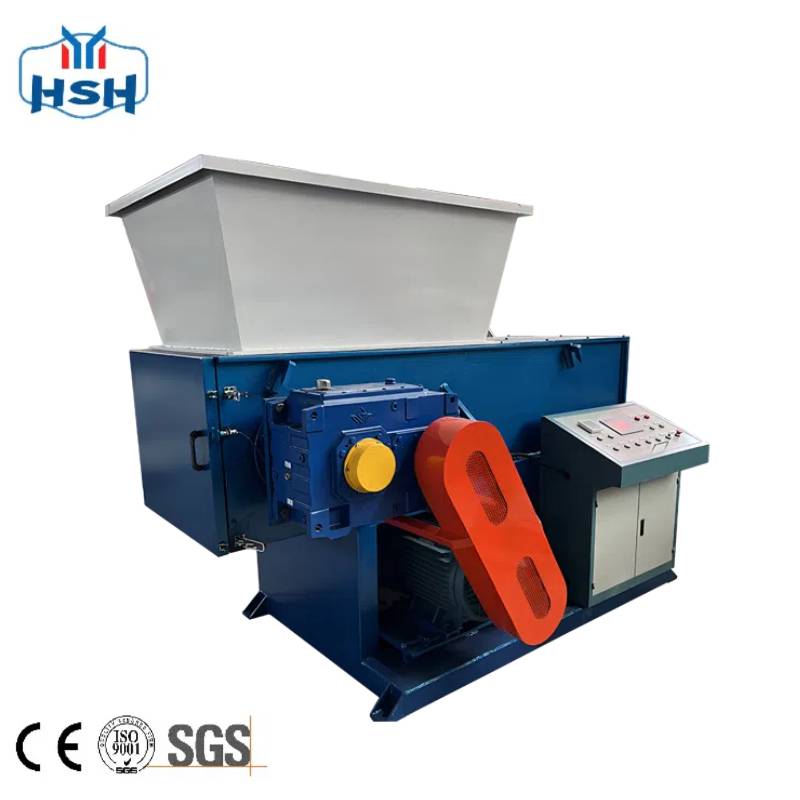

Single shaft hydraulic shredder

Single shaft shredder/shredding machine was main used to shred different kinds of plastic materials, especially very large and rigid plastic or some soft materail.

Shredder material include plastic lumps,barrels,pipes ,wood,wood pallet, big block material,plastic container,plastic chair,plastic pallet,plastic bottle,woven bags ,jumbo bags etc.

Our company has many years experience in manufacturing the plastic shredder machine, it can supply 300~3000 kg/h capacity .we also can produce it according to your requirement.

Advantage for us machine:

It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

It adopts PLC control system, automatic overload protection and auto reverse switch

Good shaft structure design, low noise, blades easy changeable

The low rotation speed results in a particularly quiet shredding process with low levels of dust generation

Plastic Crusher

Plastic pulverizer is a machine specially designed to process plastic waste, which can pulverize and reuse waste plastic products.

Blade system: the core component of the plastic pulverizer is the blade system, which consists of a set of high-strength blades. When the plastic waste into the machine, the blade will cut it into small pieces, for the subsequent crushing work.

Crushing chamber: the crushing chamber is another important part of the plastic crusher, which consists of a rotating knife plate and a fixed screen composition. The high-speed rotation of the disk so that the plastic waste and the blade constantly collision, so that it will be crushed into fine particles. At the same time, the screen can control the size of the particles to ensure that the crushed plastic particles meet the requirements.

Conveying system: the plastic crusher is also equipped with a conveying system, which can convey the crushed plastic particles to the next processing link.

Hai Shi Hong Service

Pre-sales: Provide fitted solution and offer to customers, is able to adjust the layout of complete line to fit customers working area, also provide technical support 24 hours service online.
After sales:Hai Shi Hong skilled technicians are experienced at oversea installation, therefore they are available to assist with onsite installation, commissioning & training on request. Layout drawing, circuit diagram and maintenance manual will be provided together with our products after sales, so that ensure customers have plenty of time to get prepared for installation.
Wearing parts support:Hai Shi Hong has widely built extensive cooperation with wearing parts partner manufacturers more than 14years, has ability to continuously provide wearing parts and after-sale service to global market.

TECHNICALDATA

Single shaft hydraulic shredder

Plastic Crusher
