Hai Shi Hong machinery industrial shredder is sort of twin shaft shredding machine, widely used for household garbage, municipal solid wastes, scrap metal recycling and waste rubber like car and truck tires downsize, also apply to size reduction of IBC tank, plastic/metal barrel, waste furniture, sofa, mattress, home appliances and other large size materials, which inconvenient for transportation, the shreds after processing can also be used for secondary resources recovery .

Working principle

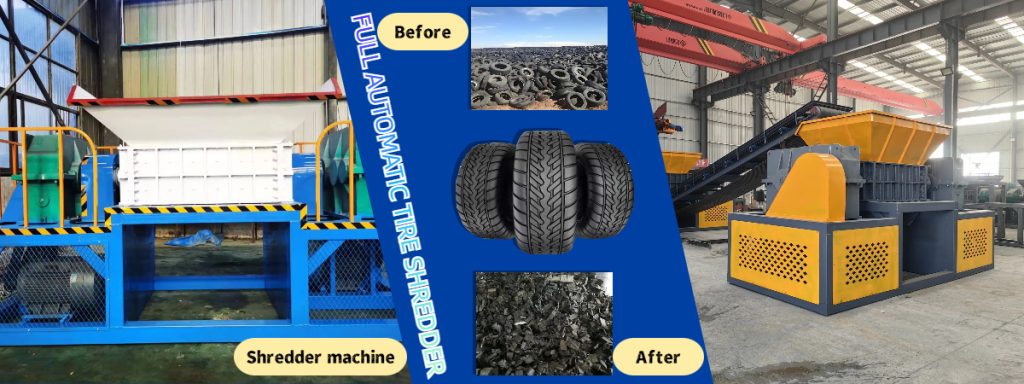

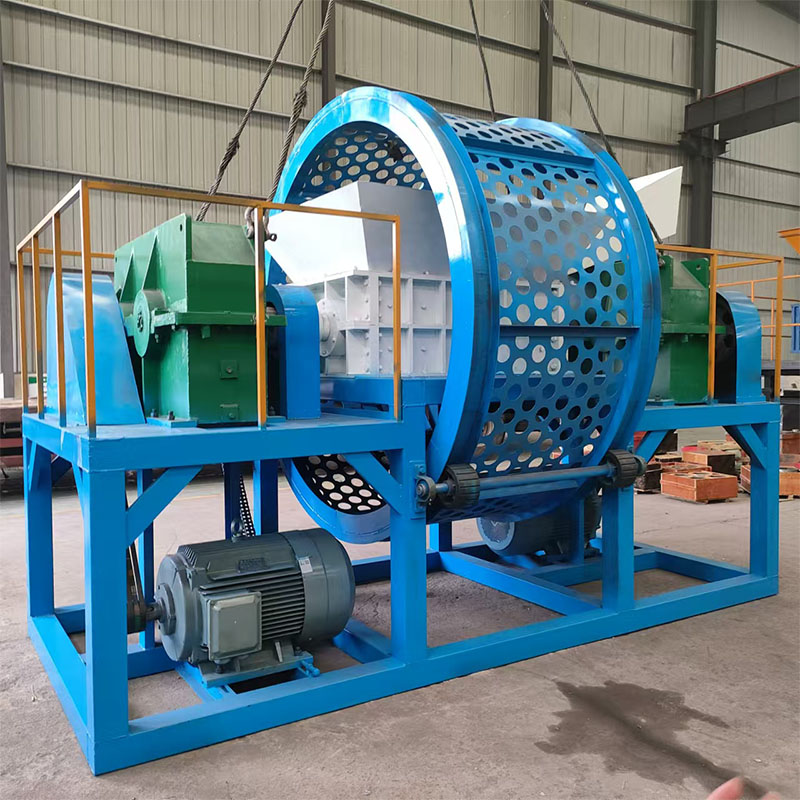

Tire shredder is a kind of equipment specially used to process waste tires, which is able to gradually shred waste tires into small pieces or pieces through physical methods such as biting, squeezing, and shearing.

1.  Plastic: large head material, engineering plastics, paint barrels, glass.

2. Appliances: TV sets, monitors, microwave ovens, dishwashers and other small and medium-sized home appliances shell, electrical equipment.

3. Electronic products: computer host shell, hard drive, CD-ROM, battery shell.

4. Pipe: PVC, PE, PP and other pipe, urban water supply pipe, drain pipe.

5. Wood: logs, pallets. wooden board, piece of furniture.

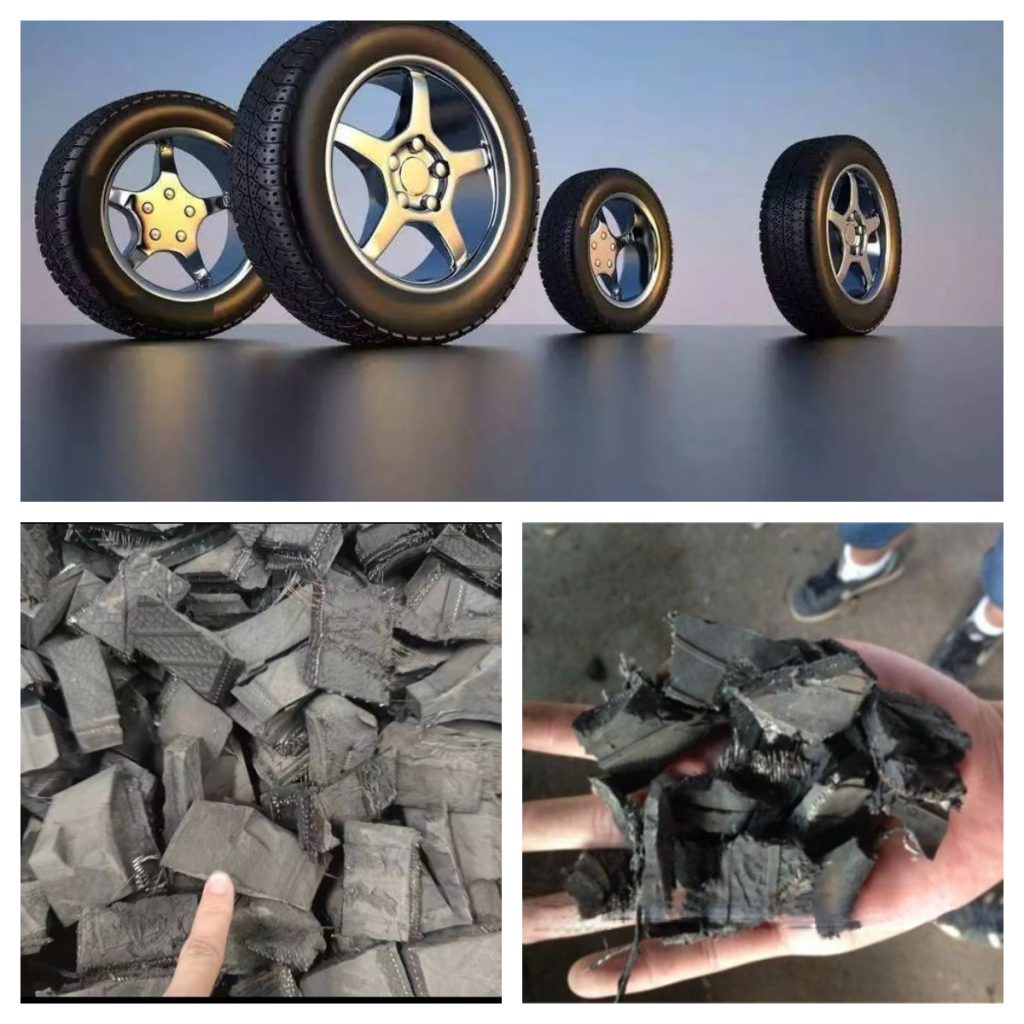

6. Rubber: waste car tires, conveyor belt.

7. Metal: steel IBC cube, metal sheet such as copper, aluminum or iron, aluminum castings and crush blocks, motorcycles, car engine housings, oil filters.

8. Worn clothes and so on.

Features

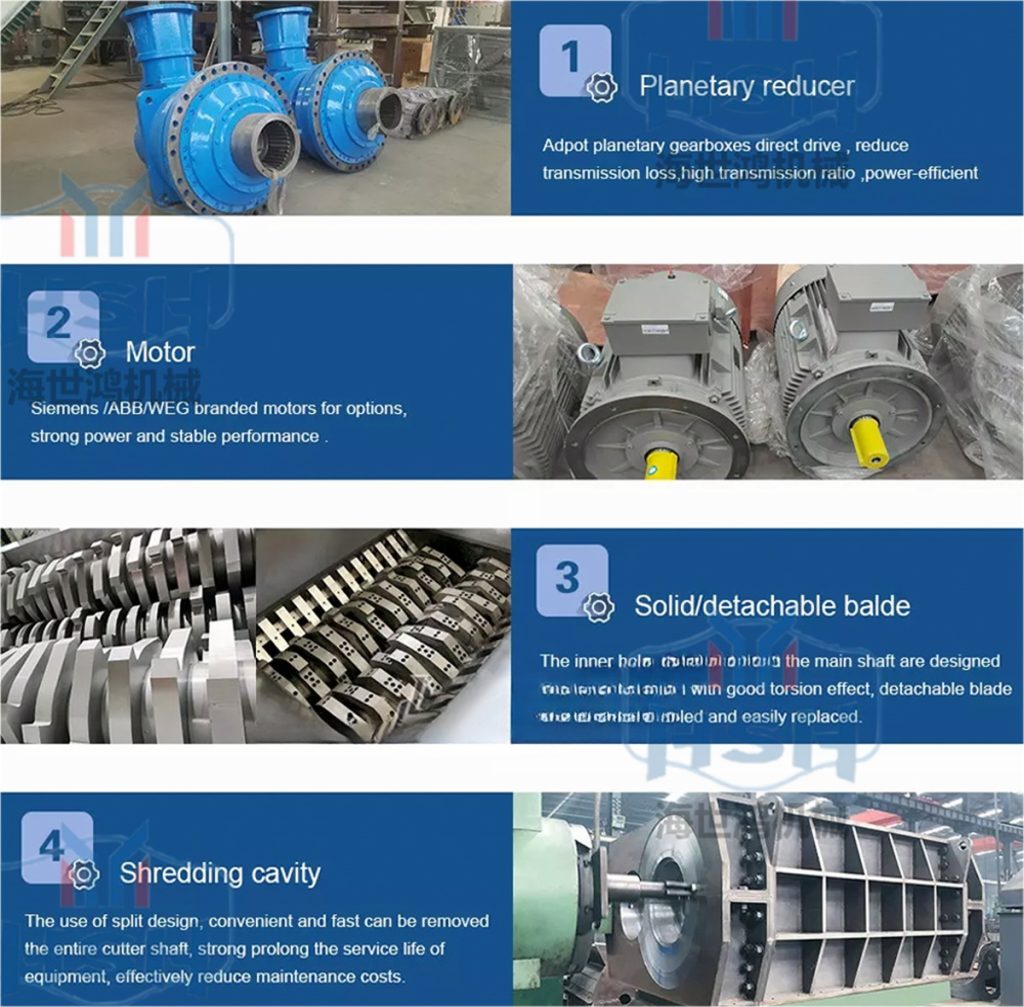

Low speed, high torque rotor, cutting and shearing working principle suitable for both soft and hard materials;
Blades made of special alloy, different shape, thickness and cutting head quantity providing the optimum solution for different materials.
Siemens, ABB, WEG…etc quality motors are available for different customers’ options
Schneider, Chint, Siemens…etc electrical components to ensure steady performance and realize machine 24hours running, also PLC system is optional to enabling automatic reverse for overload protection and minimizing blades damages;
Individual electrical control panel with PLC control system ensure the machine work properly and safety;
Detachable type cutting head on shredder blades, makes the maintenance and replacement of wearing parts easier and much shorten maintenance time.
Low speed, lower noise, workable in workshop and outdoor.

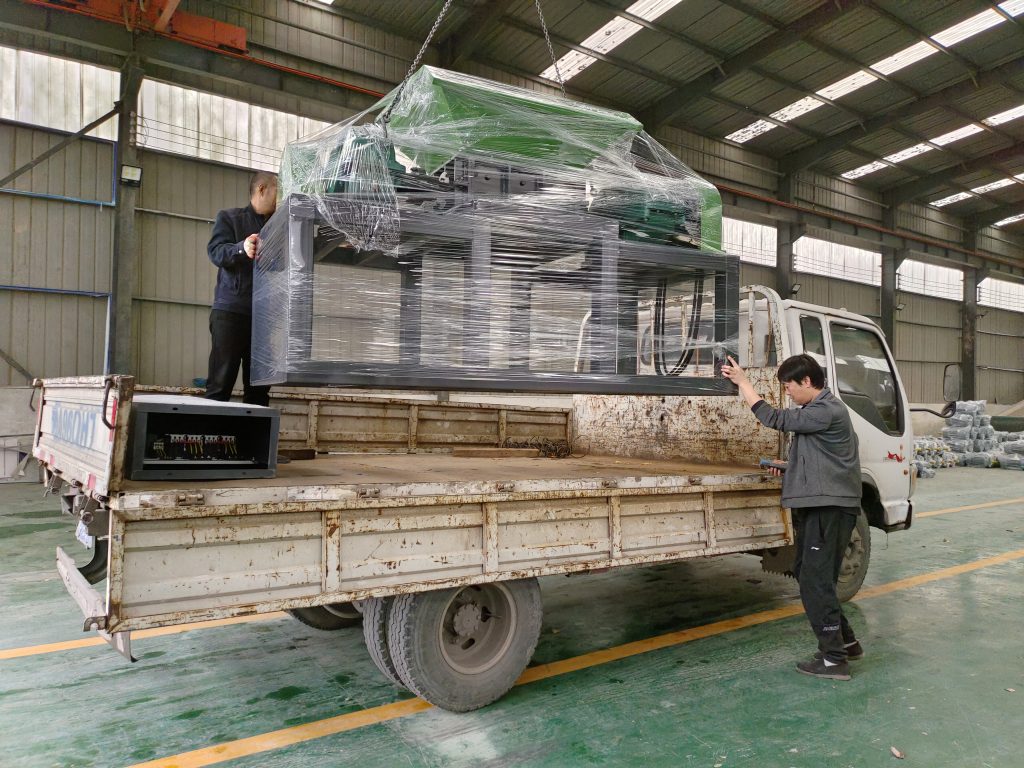

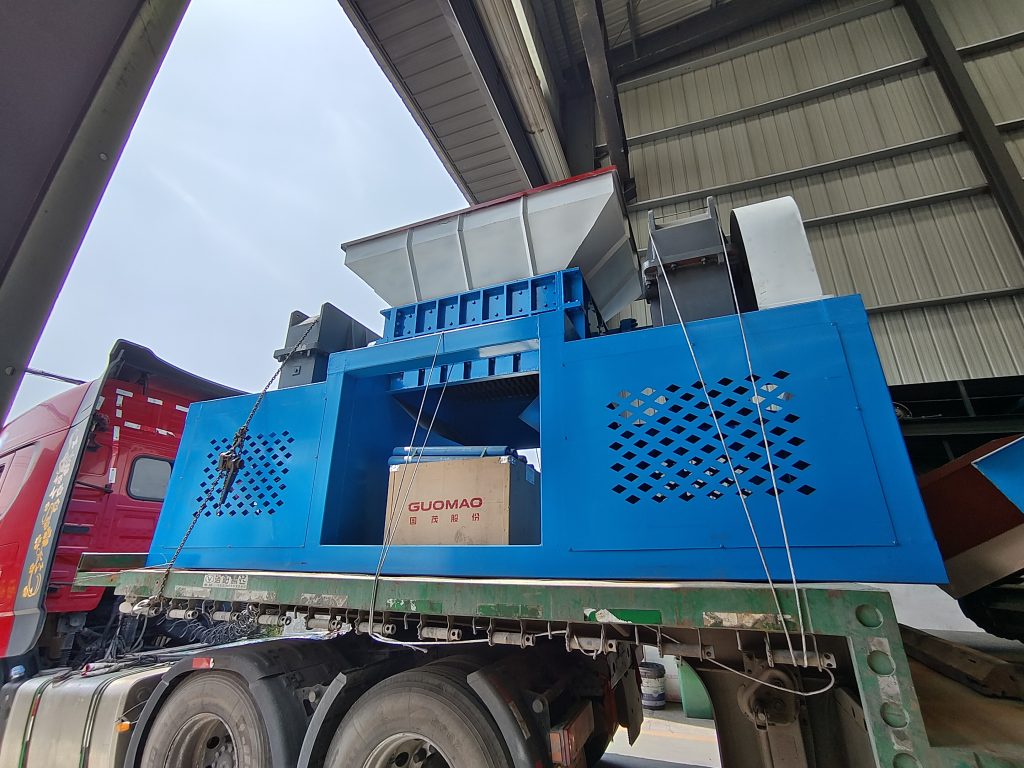

Delivery and packing

Packing
Inner packing: plastic film inner seal
Outer packing: usually wooden case or container, we can also pack the machine according to customer's requirement.

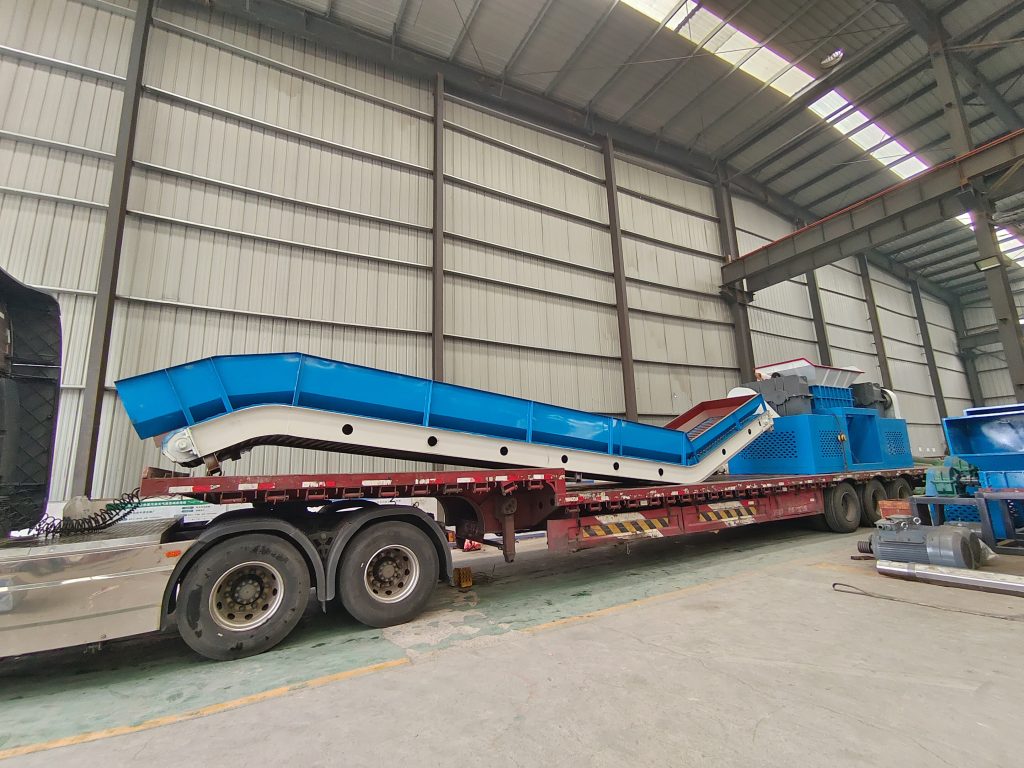

Delivery time
We will customise according to customers' actual requirements. Senior designers start to design the programme. After receiving the deposit, we will finish the delivery within 10 to 15 working days.

Technical data

Model

Blade diameter

Spindle diameter(mm)

Reducer model

Motor

L*W*H(mm)

600	220MM	110MM	ZQ400*2	11KW *2-15KW* 2	2500*1100*1600
800	260MM	130MM	ZQ500*2	18.5KW*2	3000*1400*1800
800	400MM	180MM	Square box 650*2	30KW*2	3700*1700*2200
800	400MM	180MM	Square box 750*2	37KW*2	3700*1800*2200
1000	400MM	180MM	Square box 750*2	37KW*2	3700*1800*2200
1200	400MM	180MM	Square box 750*2	45KW*2	4100*1800*2300
1400	500MM	260MM	Square box 850*2	55KW*2	4700*2100*2400
1600	500MM	260MM	Square box 1000*2	75KW*2	5400*2400*2600
1800	600MM	280MM	ZSY500*2	90KW*2	5400*2400*2800
2000	650MM	320MM	GX2KAH17-2	132KW*2	6500*2500*2800
